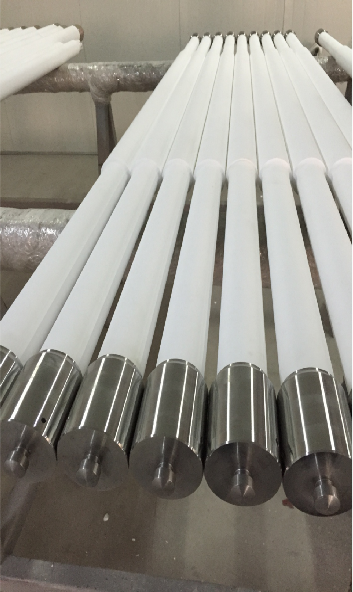

石英陶瓷輥
希力克主要生產石英輥道，石英制品件片等特種材料產品，產品廣泛應用于玻璃生產等冶煉型企業生產制造過程中。
Shelike is mainly manufacturing the special silica products such as rollers and parts that are widely used in glass manufacturing and metallurgical lines..
希力克主要生產石英輥道，石英制品件片等特種材料產品，產品廣泛應用于玻璃生產等冶煉型企業生產制造過程中。
Shelike is mainly manufacturing the special silica products such as rollers and parts that are widely used in glass manufacturing and metallurgical lines..
規格：Φ15-330mm(滿足各類玻璃生產線使用需求)
Specification: diameter ranging from Φ15-330mm that can meet the demands from all the glass manufacturing lines
產品的六大優點
Six meterits of the products
1 抗熱、抗壓性能優 Excellent performance in heat resistance and mechnical compressing
2 抗折彎強度高 High bending resistance
3 產品表面粗糙度佳 Excellent surface roughness
4 耐磨損性能高 Excellent wear resistance
5 軸套與陶瓷連接科學牢固 Solid and reliable bonding between metal parts and ceramic parts
6 標準規范生產質量可追溯
Quality traceabilites
石英陶瓷輥性能指標/The Properties Of Fused Silica RoIler
項目ITEMS 指標 TARGET
抗壓強度 compressive strength(mpa) ≥60
體積密度 Bulk Density(g/cm3) ≥1.96
SIO2(WT%) ≥99.96
顯氣孔 Apparent Porosity 8-11
高溫抗彎度 Bending Strength(mpa) ≥30
熱膨脹系數 Thermal Expansion(x10-6/℃) ?0.6
表面粗糙度 Ra/Roughness Ra（um) ≤1.6
直徑公差 Diameter Tolerance(mm) ?0.05
徑向跳動 TIR(mm) ≤0.13
